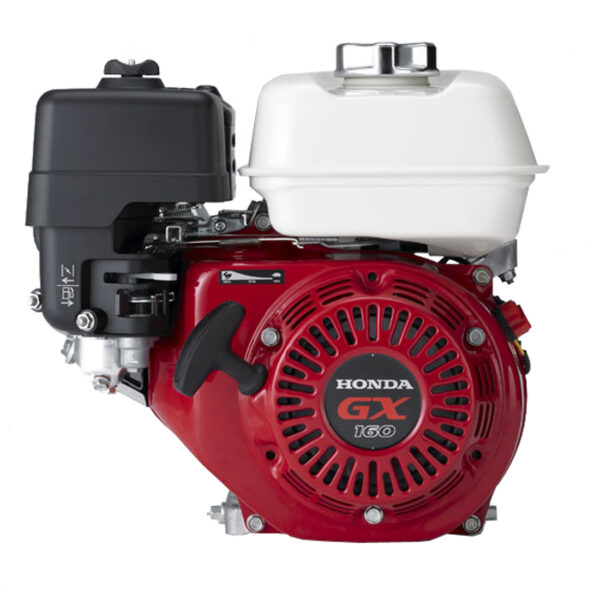

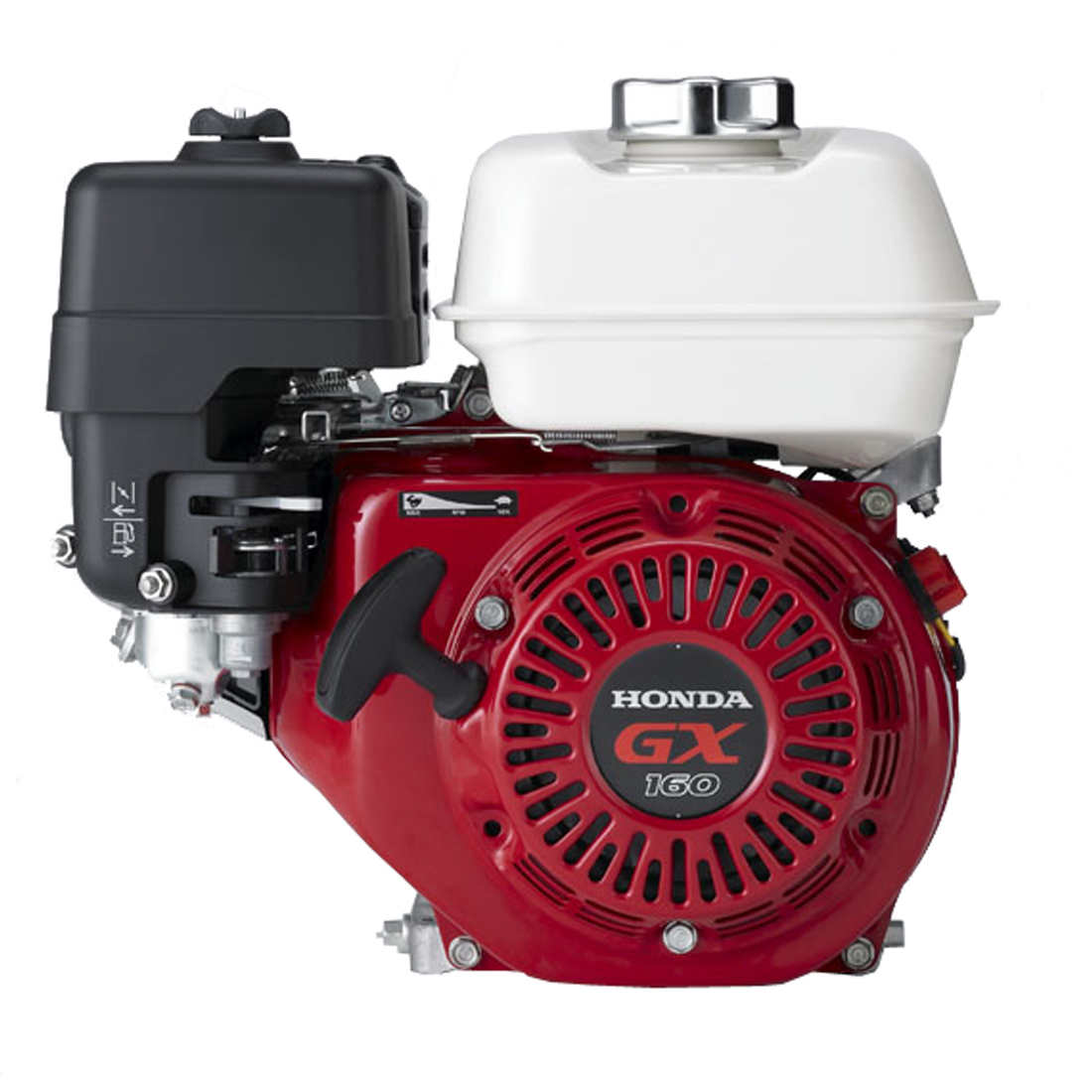

Honda GX160 Engine

Name: Honda GX160 Engine
SKU: GX160
Price: 329 USD
Availability: InStock

SKU: GX160

$329.00

Call Us For The best Deal!

(330) 674-4329

Financing Available

Description

GX120/160/200

Quality and performance come standard.

Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX120, 160, and 200 live up to the legend. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.

COMMON APPLICATIONS

Commercial lawn and garden equipment
Tillers / cultivators
Generators
Construction / industrial equipment
Agricultural equipment
Water pumps
Pressure Washers
Forestry equipment

SPECIFICATIONS

	GX120	GX160	GX200
Engine Type	Air-cooled 4-stroke OHV	Air-cooled 4-stroke OHV	Air-cooled 4-stroke OHV
Bore x Stroke	60 X 43.5 mm	68 X 45 mm	68 X 54 mm
Displacement	122 cm3	163 cm3	196 cm3
Net Power Output*	3.2 hp (2.4 kW) @ 3,600 rpm	4.8 hp (3.6 kW) @ 3,600 rpm	5.8 hp (4.3 kW) @ 3,600 rpm
Net Torque	5.5 lb-ft (7.3 Nm) @ 2,500 rpm	7.6 lb-ft (10.3 Nm) @ 2,500 rpm	9.1 lb-ft (12.4 Nm) @ 2,500 rpm
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)	Counterclockwise (from PTO shaft side)	Counterclockwise (from PTO shaft side)
Compression Ratio	8.3:1	9.0 : 1	8.5:1
Lamp/Charge coil options	25W, 50W	25W, 50W / 1A, 3A, 7A	25W, 50W / 1A, 3A, 7A
Carburetor	Butterfly	Butterfly	Butterfly
Ignition System	Transistorized magneto	Transistorized magneto	Transistorized magneto
Starting System	Recoil	Recoil Starter	Recoil Starter
Lubrication System	Splash	Splash	Splash
Governor System	Mechanical	Centrifugal Mechanical	Mechanical
Air Cleaner	Dual Element	Dual Element	Dual element
Oil Capacity	0.59 US qt. (0.56 L)	0.61 US qt. (0.58 L)	0.63 US qt (0.6l)
Fuel Tank Capacity	2.1 U.S. qts (2.0 liters)	3.3 U.S. qts (3.1 liters)	3.3 U.S. qts (3.1 liters)
Fuel	Unleaded 86 octane or higher	Unleaded 86 octane or higher	Unleaded 86 octane or higher
Dry Weight	28.9 lbs. (13.2 kg)	33 lbs. (15.1 kg)	35 lbs. (16.1 kg)

DIMENSIONS

	GX120	GX160	GX200
Length (min)	11.7” (297 mm)	12.2″ (312 mm)	12.6″ (321mm)
Width (min)	13.6” (346 mm)	14.3″ (362 mm)	14.8″ (376mm)
Height (min)	13.0” (329 mm)	13.6″ (346 mm)	13.6” (346 mm)
