$779.00

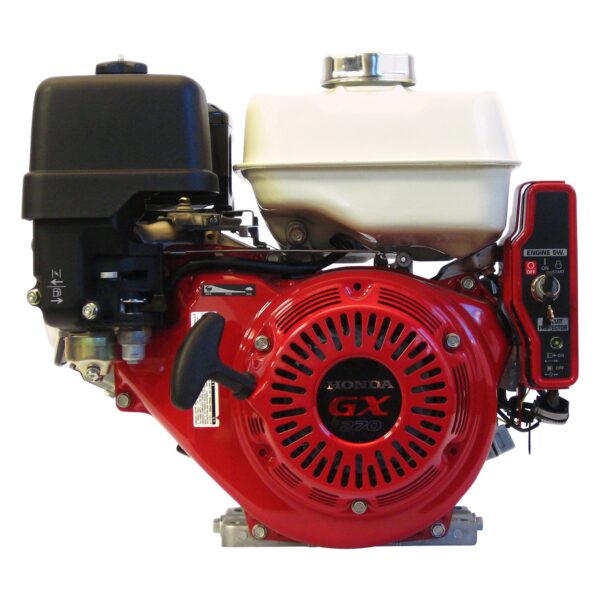

The Honda 270cc GX Series OHV commercial-grade engine is designed for the most demanding commercial applications. It has set an industry standard for reliability and durability. Overhead Valve design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life. The GX is reliable, easy starting and quiet running. Meets EPA and CARB emission levels standards. This legendary engine has earned the reputation as the preferred engine for construction equipment. Common applications include pressure washers, compressors, go-karts, log splitters and chipper/shredders. Not for sale in CA.
| Attribute | Specification |
|---|---|
|
Brand |
Honda Engines |
|
Manufacture’s Warranty |
3 year limited warranty |
|
Ship Weight |
64.0 LB |
|
Engine Displacement |
270 cc |
|
Engine Type |
GX Series OHV commercial-duty |
|
Shaft Diameter |
1 in |
|
Shaft Length |
3.48 in |
|
Start Type |
Electric w/recoil backup |
|
Shaft Keyway |
0.25 in |
|
Net Torque |
14.1 ft-lbs. |
|
Crankshaft |
Q-type |
|
PTO Height |
5.25 in |
|
Cylinders (qty.) |
1 |
|
Cylinder Bore |
Cast Iron |
|
Net Power Output |
8.5 HP |
| Attribute | Specification |
|---|---|
|
Compression Ratio |
8.5:1 |
|
Fuel Tank Capacity |
5.6 qt |
|
Oil Capacity |
1.16 qt |
|
Low Oil Alert |
Yes |
|
Shaft Rotation (From PTO Shaft Side) |
Counterclockwise |
|
Governor System |
Centrifugal mechanical |
|
Ignition System |
Electronic |
|
Carburetor |
Float, external vent |
|
Lubrication System |
Splash |
|
Cooling System |
Air cooled |
|
Bore |
3 in |
|
Stroke |
2.3 in |
|
Air Cleaner Type |
Dual element |
|
Choke Control |
Manual |
|
Throttle Control |
Remote (wire) |
|
Fuel Filter |
Fuel tank filler neck strainer |
