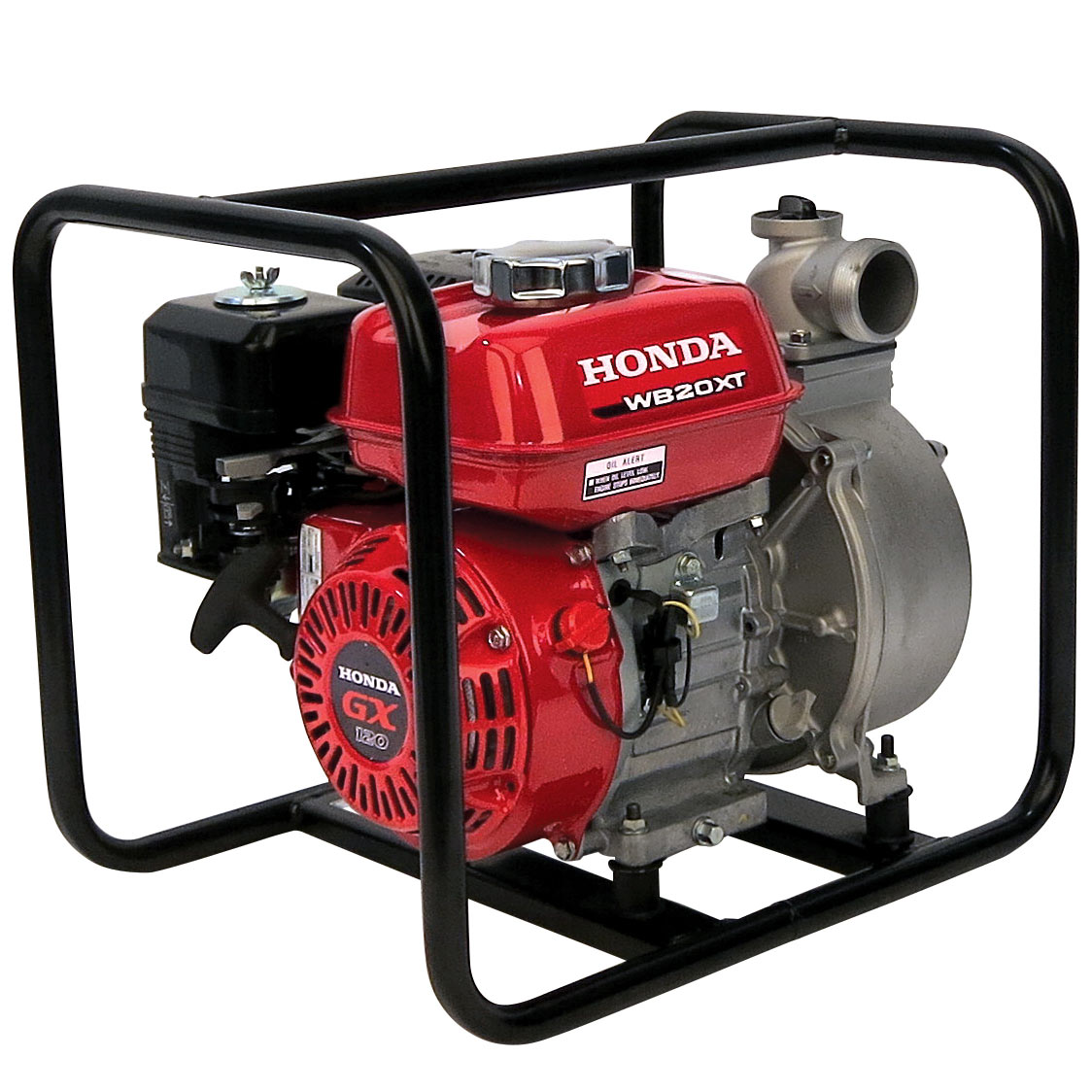

Honda WB20 Water Pump

SKU: WB20

$549.00

Call Us For The best Deal!

Description



WB20XT3

2″ general purpose water pump

  • 164 gal./min. capacity
  • Durable silicon carbide mechanical seal
  • Cast iron volute and impeller

Specifications

Engine GX120
Displacement 118cc
Bore and stroke 2.4″ x 1.7″
Compression Ratio 8.5:1
Oil Alert Std
Pump Type  Centrifugal, Self-priming
Volute Rigid Mounted Cast Iron
Impeller 4 Vane Cast Iron
Mechanical Seal (Pump case / impeller)Silicon Carbide/Silicon Carbide
Priming time 110 sec @ 16.4 ft.
Drive system Direct
Discharge capacity 164 gal/min
Suction port diameter 2″ NPT
Discharge port diameter 2″ NPT
Total head lift 105 ft.
Suction head lift 25 ft.
Maximum pressure 45 psi
Solids handling N/A
Dimensions (LxWxH)19.3″ x 14.4″ x 16.5″
Dry weight 44 lb.
Run Time @ Max Discharge 1.7 hr
Residential Warranty 24 months
Commercial Warranty 12 months

Features

Easy starting Honda OHV commercial engine
Easy starting Honda OHV commercial engineThe durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.

Durable silicon carbide mechanical seal
Durable silicon carbide mechanical sealThe WB20 features abrasion-resistant silicone-carbide seals for extended wear.

4 vane high efficiency impeller
4 vane high efficiency impellerThe WB20’s exclusive, Honda-designed 4 vane impeller offers improved performance and high efficiency.

Cast iron volute
Cast iron voluteThe rigid-mount cast iron volute reduces case wear, increasing the life of the pump.

Heavy duty full frame protection
Heavy duty full frame protectionProtects the pump, while offering a convenient tie down location for transport.

Isolation mounted engine and pump
Isolation mounted engine and pumpHigh performance mounts minimize vibration, keeping the pump from “walking away or “burying itself in soft soil conditions. The reduced vibration also reduces wear on components, increasing the pump’s durability.

Protected by Honda Oil Alert<sup>&reg;</sup>
Protected by Honda Oil Alert®Protects the pump by shutting the engine off when low oil is detected.

Large strainer
Large strainerThe strainer allows up to 8 mm (5/16 in.) solids to pass through, helping to prevent clogging.
