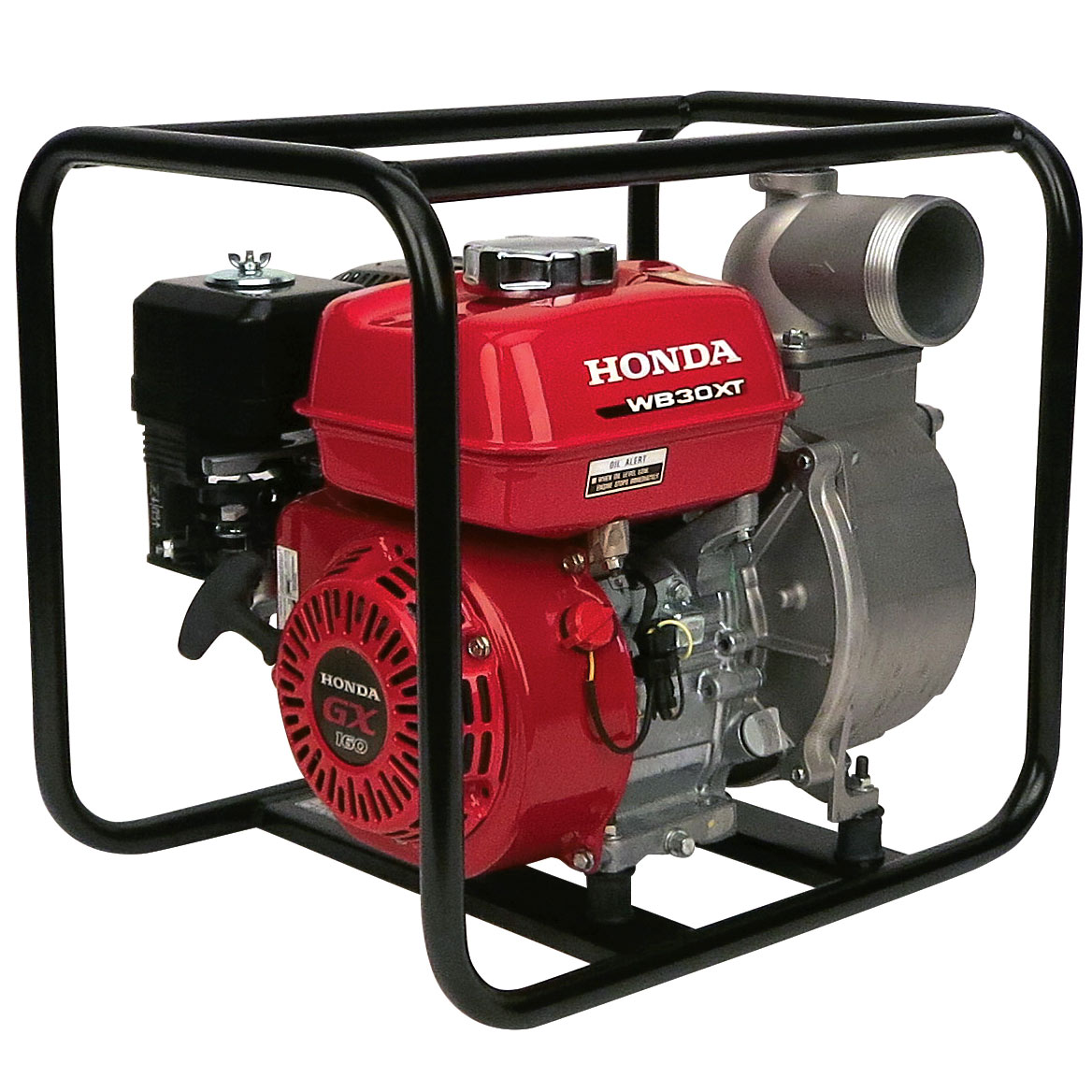

Honda WB30 Water Pump

Honda WB30 Water Pump

SKU: WB30

$749.00

Call Us For The best Deal!

(330) 674-4329
Financing Available

Description



WB30XT3

3″ general purpose water pump

  • 290 gal./min. capacity
  • Silicon carbide mechanical seal
  • Cast iron volute and impeller

Specifications

Engine GX160
Displacement 163cc
Bore and stroke 2.7″ x 1.8″
Compression Ratio 9.0:1
Oil Alert Std
Pump Type Centrifugal, Self-priming
Volute Rigid Mounted Cast Iron
Impeller 4 Vane Cast Iron
Mechanical Seal (Pump case / impeller)Silicon Carbide/Silicon Carbide
Priming time 150 sec @16.4 ft.
Drive system Direct
Discharge capacity 290 gal/min
Suction port diameter 3″ NPT
Discharge port diameter 3″ NPT
Total head lift 85 ft.
Suction head lift 25 ft.
Maximum pressure 37 psi
Dimensions (LxWxH)20.1″x 15.2″ x 17.9″
Dry weight 57 lb.
Fuel Capacity 0.82 gal
Run Time @ Max Discharge 1.9 hr
Residential Warranty 24 months
Commercial Warranty 12 months
