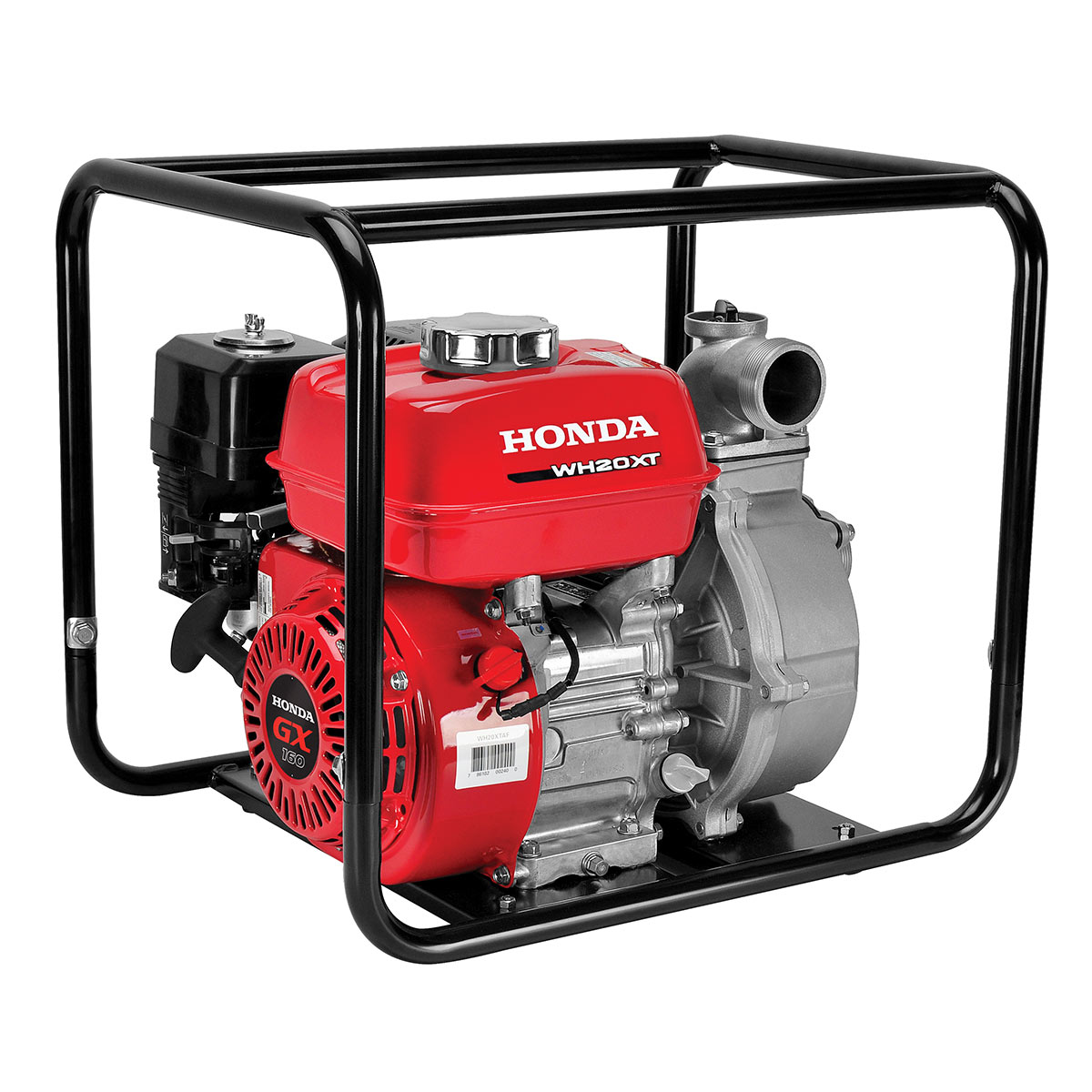

Honda WH20 High Pressure Water Pump

Name: Honda WH20 High Pressure Water Pump
SKU: WH20
Price: 799 USD
Availability: InStock

SKU: WH20

$799.00

Call Us For The best Deal!

(330) 674-4329

Financing Available

Description

WH20XTAF

2″ high pressure water pump

119 gal./min capacity
64 psi max.
Cast iron volute and impeller

Specifications

Engine GX160

Displacement 163c

Compression Ratio 9.0:1

Oil Alert N/A

Pump Type High Pressure, Centrifugal, Self-priming

Volute Rigid Mounted Cast Iron

Impeller Cast Iron

Mechanical Seal (Pump case / impeller)Carbon/Ceramic

Priming time 80 sec. at 16.4 ft.

Drive system Direct

Discharge capacity 119 gals./min.

Suction port diameter 2″ NPT

Discharge port diameter 2″ NPT

Total head lift 148 ft.

Suction head lift 26 ft.

Maximum pressure 64 psi

Solids handling N/A

Dimensions (LxWxH)20.5″ x 15.7″ x 18.1″

Dry weight 60 lb.

Fuel Capacity 0.82 gal

Run Time @ Max Discharge 1.5 hr

Residential Warranty 24 months

Commercial Warranty 12 months

Features

High pressure – ideal for sprinklers or nozzlesWith a maximum pressure of 64 psi, the WH20 is designed for a variety of applications requiring high pressure.

Easy starting Honda OHV commercial engineThe durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.

119 gal./min capacity

Cast iron volute and impellerThe rigid-mount cast iron volute reduces case wear, increasing the life of the pump.

Heavy duty full frame protectionProtects the pump, while offering a convenient tie down location for transport.

Lightweight aluminum case
